A Data Science Toolkit



Outfitting Production lines for Data Products




Michael A.Smith, Sr. Analyst at ICF International

Clarence Dillon, Graduate Student at GMU's Krasnow Institute

for 2014 MORS Symposium, WG {29, 33}

Introduction and Outline

  1. Why we care about Data Science
  2. Themes used throughout this presentation
  3. Describing the Industrial Data Flow
  4. Resources for your next steps

Why We Care About Data Science

  • Currently trending
  • There's so much more data now!
  • Confluence of disciplines
  • Production of insights and methods
  • Reproducibility

New Popularity of Data Science

  • A (new) way to integrate perspectives
  • A way to leverage computer power
    • Speed, Volume, Reliability, Consistency
    • Processing power, parallelization
  • Applied Science

Reproducibility

  • Reproducibility vs Replicability
  • Closest we can do with event and social data
    • not completely scientific
    • better than nothing
  • Necessary for engineering the data process
  • Toolkit enables production of insights

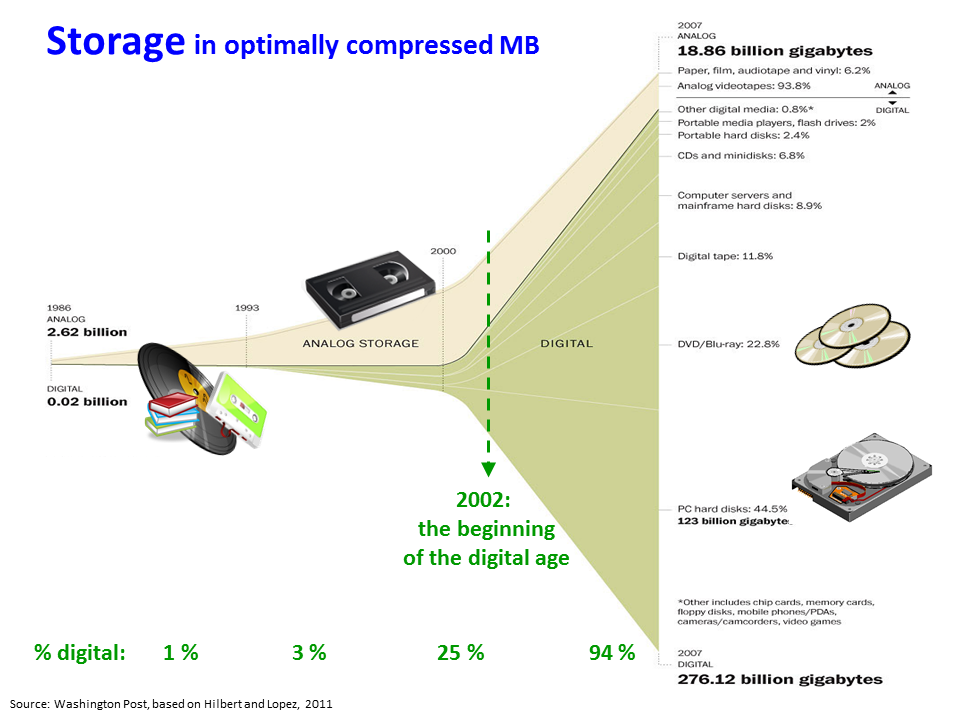

Growth of Data

Growth of Data[1]

Presentation Themes

  • Process Steps
    • Cross-industry Standard Process for Data Mining (CRISP-DM) [4]
    • Data Science as building a production line
  • Big Data
    • This presentation is NOT//NOT about big data
    • but, these tools are necessary for big data

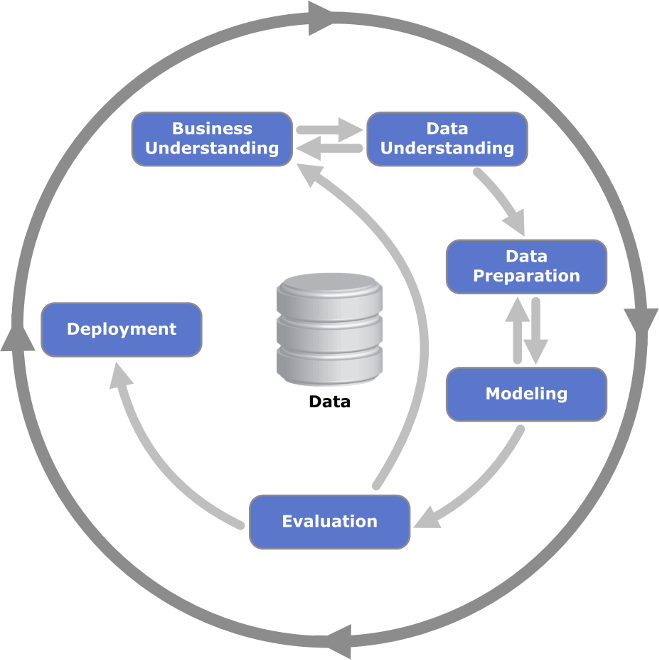

CRISP-DM

Data Science

  • Sexiest job of the 21st Century [12]
  • New kinds of data and inquiry necessitate a new set of skills
    • What distinguishes a data scientist
    • Databases contain data; data science generates data products
  • Statistics: the grammar of data science
  • A team sport

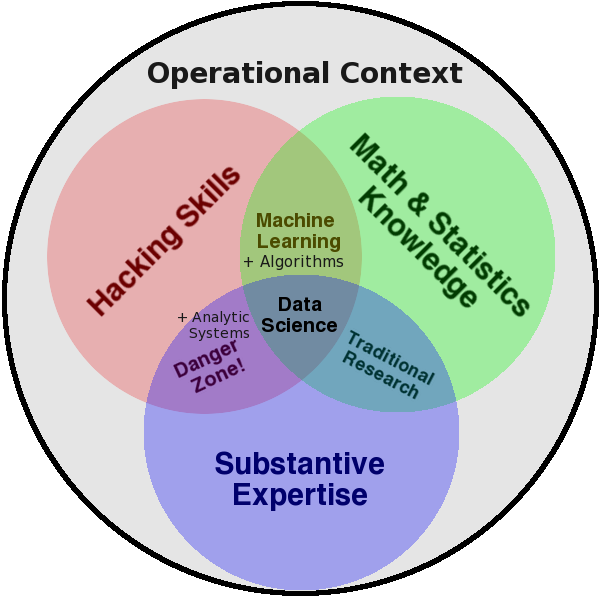

Data Science Venn Diagram---Enhanced

Drew Conway and NIST [2]

Friends Don't Let Friends Use Excel

Statistics & Math

  • Right tool for the job
    • Friends don't let friends use Excel for stats [5], [8]
    • Pick the ecosystem that's right for you
  • *nix Ecosystem:
    • R, Python
    • Octave
  • Windows Ecosystem:
    • SAS/JMP, Stata
    • Tableau, NodeXL

Strata Data Science Salary Survey 2013 [2]

Hacking

  • 'nix environments (OSX, Linux)
    • C/C++, R (RCPP), Python, Java, Ruby, Perl, ...
    • MySQL, Hadoop, MongoDB, Mahout, ...
    • D3, Google Charts, homegrown viz
  • Windows
    • C#, VB.Net
    • SQL, Oracle, Excel
    • Tableau, other JavaScript

Subject-Matter Expertise

  • What to calculate
    • What it means
    • How to approach a problem
  • Why Soft Skills Matter [6]
    • area experts are driven fundamental question
    • statisticians & programmers focus on the analytic problem

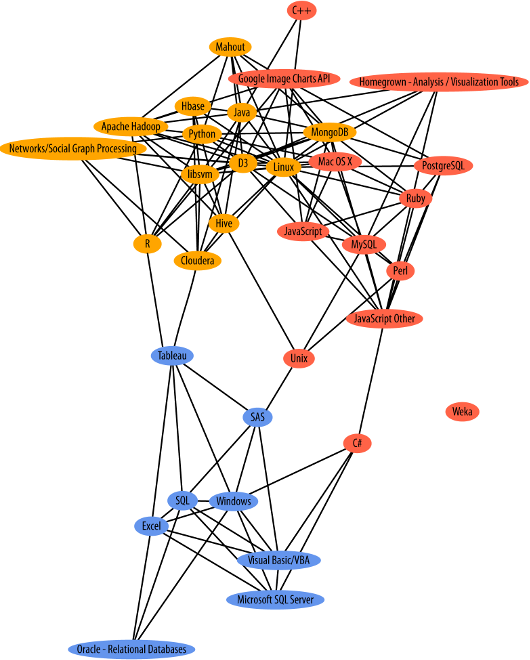

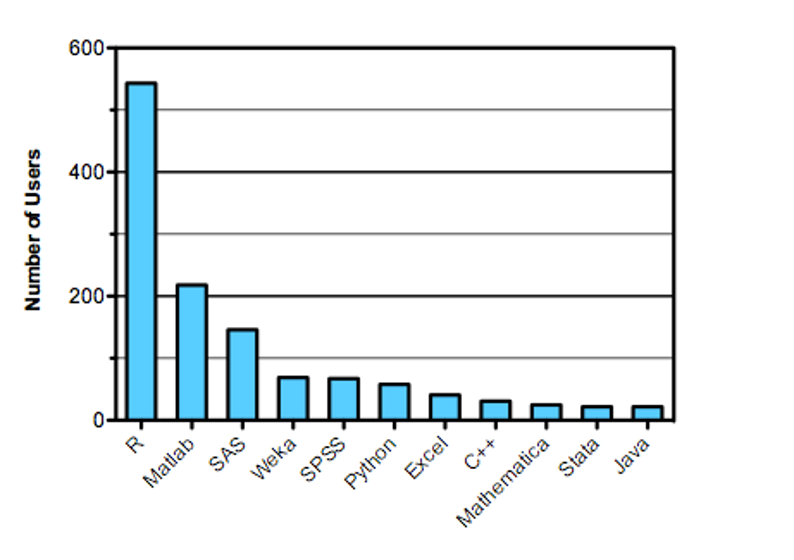

Tools Data Scientists Use

Discovering the ecosystems

Process

  • Acquire
  • Clean
  • Explore and Visualize
  • Model and Analyze
  • Products and Publications

Data Acquisition

  • Data sources
    • Repositories (downloadable)
    • APIs (JSON, XML, ...) [9]
    • Databases (SQL, JSON, XML, ... )
  • Big data
    • (it'll be the last time we talk about it)
    • Hadoop, Pig, Hive
  • Provenance
  • Keep a copy of the raw data

Sources

  • Warehouses & Repos
  • Accessibility
    • APIs
  • Freedom
    • Lower the bar for entry
    • Invite discussion, validation, improvement

Big Data

  • Good data science is prerequisite to big data
  • Importance of repeatable processes
    • Map-Reduce
    • Continuous process of a data flow
  • Like water treatment or electricity production
    • Data science == engineering the facility

Provenance

  • Validation and accreditation
    • What have you got
    • Where did it come from
    • Has somebody tampered with it
  • How did your source get it
    • any pre-processing or amalgamation
    • original (field) data may be 'dirty'
    • machine-generated data may be 'buggy'

Cleaning Data

  • Standardization
    • Units of Measure
    • Misspellings, Initials
    • Systematic or occasional differences
  • Missing values
  • Maintaining traceability

Standardization

  • Translating Units of Measure
    • standard libraries
    • explicit translations
  • Dealing with typos and differences
    • Levenshtein distance
    • Differences in code lengths [7]
    • Java: 24, C++: 63, VB.Net: 20, C#: 39
    • Python: 15, PHP: 1, R: 2

Missing Values

  • Filter out records with missing values
  • Simulate missing values
    • adding replacement records
    • consider the impact on other correlations
  • Replace with 0 or 'NA' explicitly

Explore Data

  • Format, volume, shape, size, extent, ...
  • Exploratory visualization
  • Exploratory statistics (summary stats)

Shape and Volume

  • Format
    • Open formats: CSV, TSV, XML, JSON
    • Closed formats: DTA, SAS, XLS(X)
  • Shape
    • Long or wide, sparse or dense
    • Tabular, nested
  • Size
    • How big will it be in program memory?
    • Does the JVM need a bigger heap size?
    • Can it be loaded bit-by-bit?

Exploratory Viz

  • Lattice (and other pair-wise/factor comparisons)
  • Interactive graphics
    • ggplot2 (ggplot or qplot)
  • Networks
    • layouts
    • trees and hierarchies

Lattice Example

Lattice

Lattice[10]

Visualization Sequiter

Labels

Exploratory Stats

  • Summary statistics
    • Measures of central tendency
    • Compare to impressions from size/shape
  • Autoregression

Summary Stats Awareness

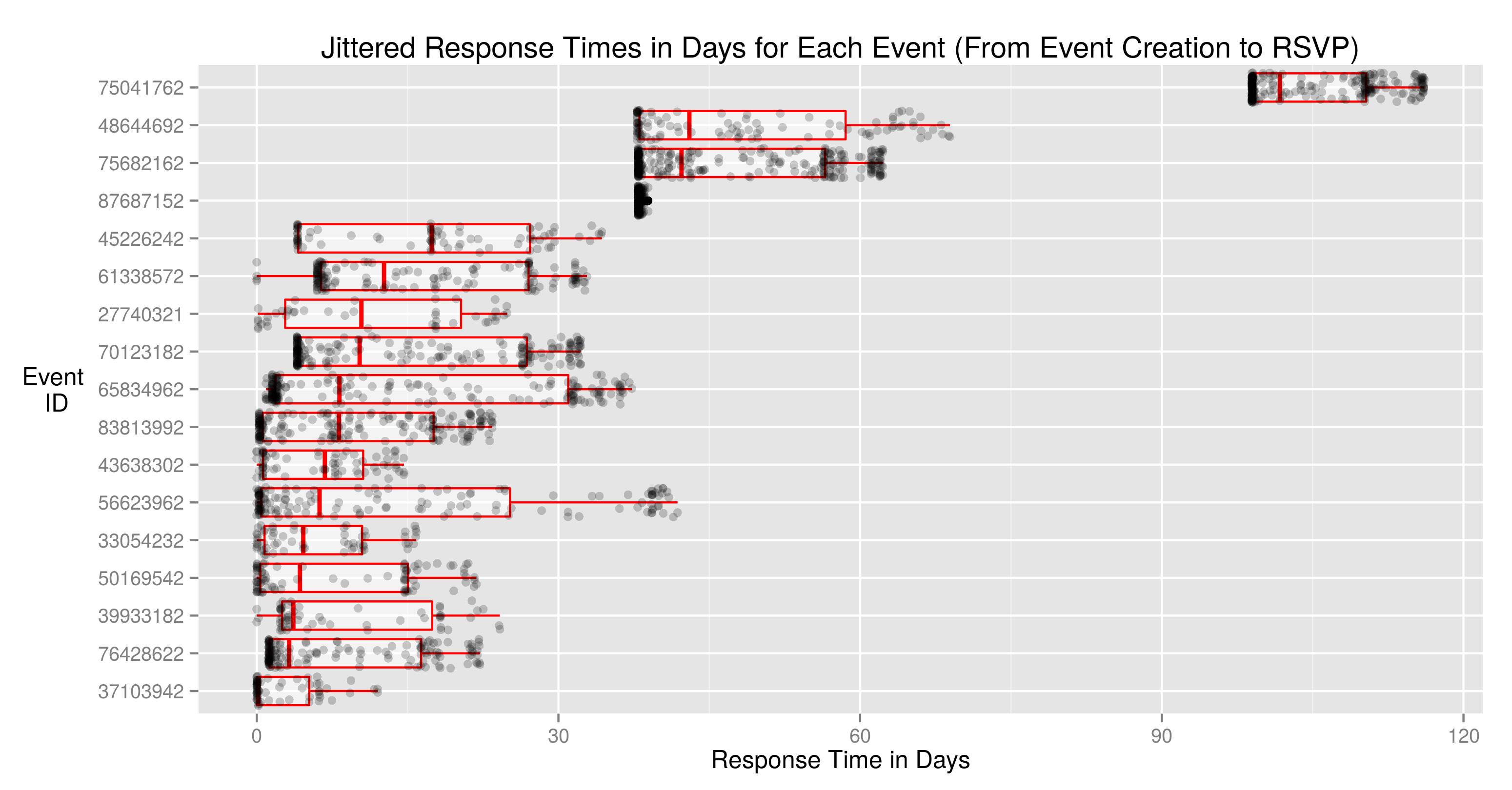

Jitters vs Whiskers

More Summary Stats Awareness

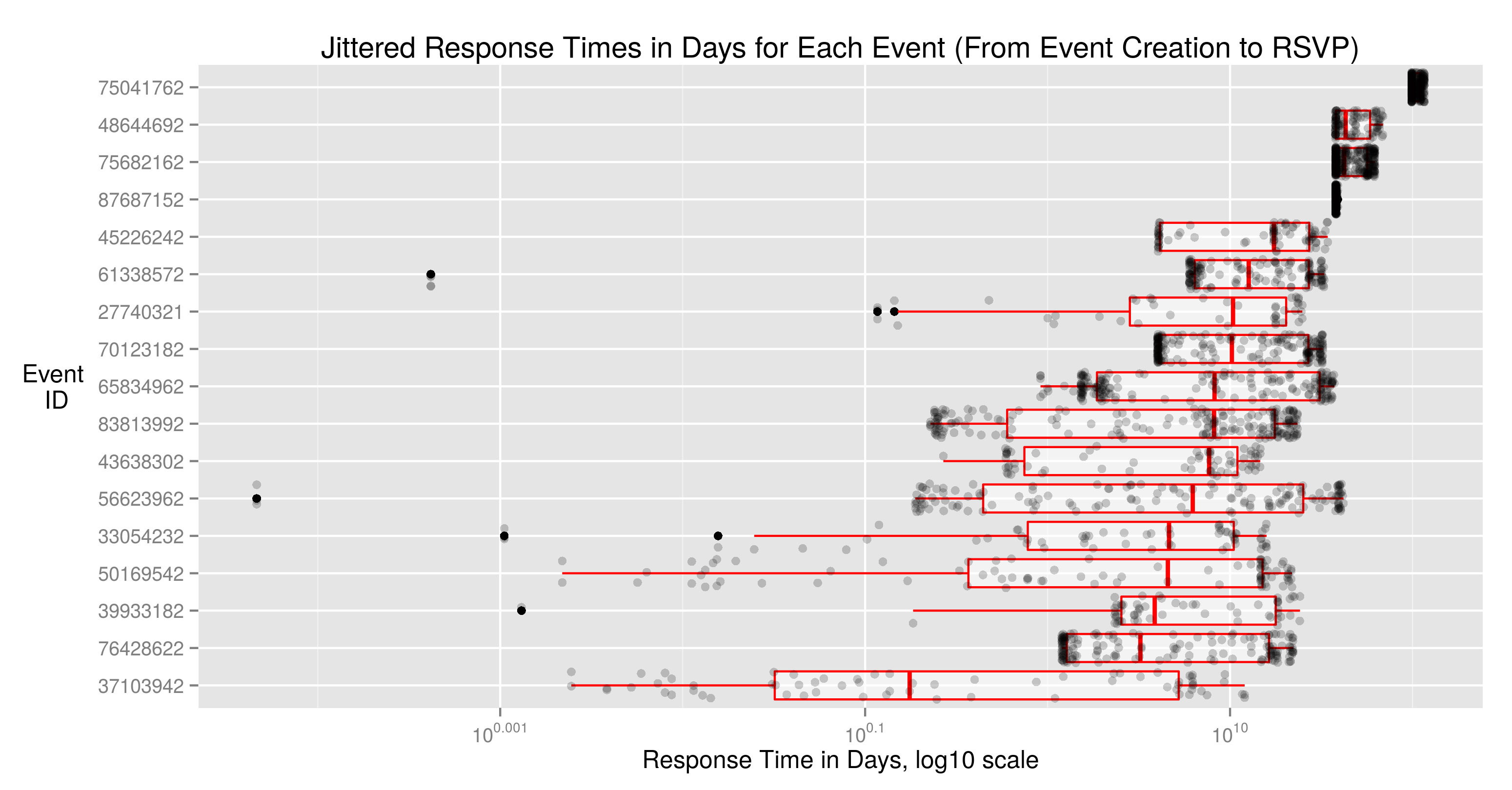

Jitters vs Whiskers

Models & Analysis

  • This is the 'secret sauce' for your data product
  • Demonstrate the insight(s) from exploration and analysis
  • Narrate the data story

Regression

  • Identifying dependent and independent factors
  • Lingua Franca of statistical relationships
    • Correlation, way to deal with multiple factors
    • Reliable quantitative method to contextualize results
  • First step in predictive statistics

Product

  • Reproducible research
  • Sharing code & data
    • PDFs of tables are cruel and thwart the cause of science
    • PowerPoint is where data goes to die
  • If you're product is good, it may deserve an API

Reproducible research

  • You care because you value your own time/data
    • don't you?
    • Can you reproduce your own work 6 months later?
  • Share the code as well as the raw data
  • This is a science of building the assembly line as much as the products

Data Products

  • Think of this as the packaging step for manufactured products
  • Documentation is like the instruction manual
  • Publication of reports
    • LaTeX and Sweave for printables
    • Markdown and javascript for the web
  • Publication of data
    • CSV, JSON, text or other open format
    • Raw data and processed data as well as process and results

APIs

  • Selective mirror for your data
    • REST-ful service
    • "easy" does not (necessarily) mean "free"
  • Why it's useful, before and after
  • What you'll need to access most data
    • OAuth, OpenID, local accounts
    • PKI certificates

Resources for More Info

  • Local University Programs
    • GW: Business Analytics
    • GMU: Computational Informatics, Data Science
    • UMUC: Human-Computer Interaction, Systems Research
  • Online
    • MOOCS: Coursera, EdX, Open Courseware
    • CodeCademy, Code School (O'reilly), Lynda
    • Blogs and newsletters: O'reilly, Is(R), ...
  • Local
    • Data Community DC
    • your local Meetup
    • General Assembly

Conclusion

  • Data Science is not just 'applied statistics'
    • Reproducibility (scripted processes)
    • Subject-matter Expertise, aka Soft Skills
    • Team sport (no unicorns)
  • Toolkit make Data Science scalable, extensible
  • Value added comes from:
    • Insights (not just data munging)
    • Designing the process/tools; reproducibilty

References

  • 1 "Rise of the Digital Information Age, Washington Post"
  • 2 "Strata Data Science Salary Survey"
  • 3 "Kaggle Blog"
  • 4
  • 5 "right tool for the job, Univ. Iowa Statistics"
  • 6"DataInformed - why soft skills matter "
  • 7 "Rosetta Code"
  • 8 "JP Morgan fined for use of Excel to model risk"
  • 9 "What You Should Demand from APIs"
  • 10 "Deepayan Sarkar, Lattice: Multi-variate Data Visualization with R"
  • 11 "Types of Data Scientist"
  • 12"New York Times For Today’s Graduate, Just One Word: Statistics, August 5, 2009"
  • 13 "XKCD, 'Commitment' "
